New IHC Trailing Suction Hopper Dredger 500m³ For Sale | SHER Worldwide

4th June 2025 -

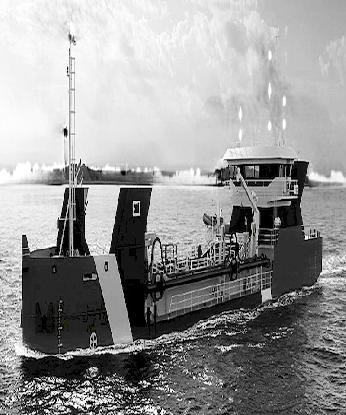

FOR SALE: Brand New IHC Trailing Suction Hopper Dredger 500 M3

Direct from Yard – Immediate Availability!

Constructed under IHC's renowned supervision, is now available for serious buyers.

Vessel Specifications :

• Type: IHC Trailing Suction Hopper Dredger (TSHD) w.Bottom Doors

• Capacity: 500 m³ Hopper Capacity

• DWT: 810 mtdwat on 3.50 m summer seawater draft

• Built: 2025

• Builder: Brazil (Under IHC Supervision)

• Class: BV Class I, +Hull +Mach, Hopper Dredger - Unrestricted

• Special Survey: Due 2030

• Flag: Jamaica

• Port of Registration: Kingston

• Length Overall (LOA): 49.40 m

• Length PP: 47.50 m

• Beam: 11.40 m

• Gross Tonnage: 1000 GT

• Bridge/Engine Room: Aft

• Max. Dredging Depth: 15 m

• Suction Pipe: 400 mm diameter

• Dredge Mouth: IHC Excavator

• Dredge Pump: HRLD 70-17-40 (3 blades) x 287 KW

• Discharge: Bottom doors (No pumping out, no pump ashore, no rainbowing)

• Crew Accommodation: For 14 persons

• Control System: Dredging Control system

• Measuring Equipment: Fluid density Measuring equipment

• Deck Equipment: Maintenance Crane on deck, fwd.

• Main Engines: 2 x 339 KW

• Propellers: 2 x Fixed Pitch type

• Diesel Generators: 2 x 150 KW / 400 V / 50 Hz AC

• Emergency Generator: 1 x 49 KW / 400 V / 50 Hz AC

• Laden Speed: 9 knots

• Note: Vessel was ordered for a South American client who gave up the purchase. Yard is now selling directly.

• IHC Support: Familiarization training and 24-hour technical services provided by IHC.

Asking price: To be revealed to very serious & committed buyers only upon full business & background disclosure.

COMMITMENT REQUIRED: To ensure mutual respect for time and resources, we require:

1. Clear Budget Levels: Aligned with international market rates.

2. End Buyer Background Disclosure: Serious named buyers only.

Contact Us for Inquiries:

Email: "Mr.Sher (VESSELS) Singapore - Malaysia - S&P" / "Mr.Sher (VESSELS) Singapore - Malaysia - S&P"

T&Cs apply as per website. Details believed correct at the time of advertising. Vessels/items offered “as is where is,” subject to prior sale or withdrawal. SW not liable for errors or omissions and reserves the right to amend contents without notice.
